Green House Fan Cooling System
PUSH PULL TYPE EXHAUST FAN
STRUCTURE AND PRINCIPLE

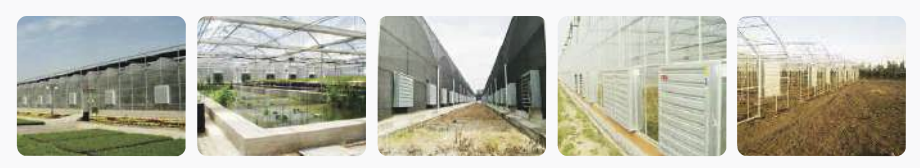

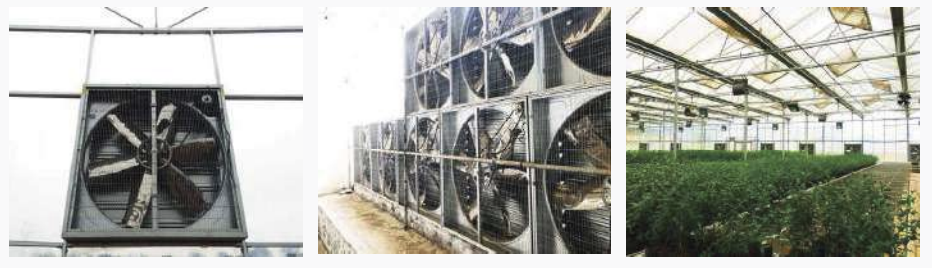

MP series High class fan is mainly made up of blade, Centrifugal Opening Device, motor. outer frame, protecting nets. supporting frames, shutters. It is made based on aerodynamic, effectively reduce the wind resistance.The major parts are made of galvanized steel sheets and Stainless steel sheets.All the products are widely used in various types of buildings as farms.Greenhouse. Factory building.
AIR FLOW CURVE
TECHNICAL PARAMETERS

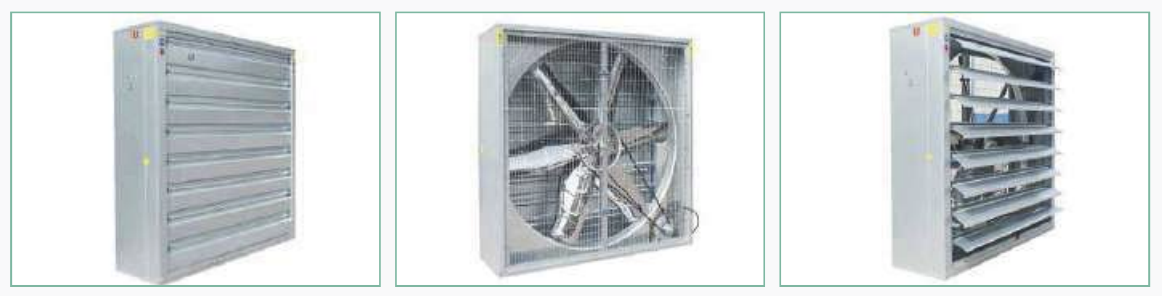

MP PUSH PULL TYPE EXHAUST FAN
 |
Fan blade are advanced through the computer dynamic balance measuring instrument calibration, Dynamic balance control in 1g. The fan running smoothly, The blower to smooth running, small vibration, low noise. enhances the stability of the whole machine Fan blade materials are stainless steel, galvanized plate. Aluminum.alloy three kinds of optional material. |
 |
Fan blade is made of Krupp stainless steel by punch forming, no dust, attractive and durable, Special blades shape design ensure large air volume, no deformation, no broken, keep air volume same all the way Thickness 1. 2mm, surface finish BA grade. |
 |
Motor have domestic brand motor and Siemens motor can be chosen Motor voltage and frequency can be customized Domestic brand motor joining open phase protection device, When the lack of power, can carry out their own power to control; Motor protection grade IP 55, insulation class: F. |
 |
Centrifugal type open mechanism can guarantee that the shutters completely open and close. Make the shutters opened to reduce resistance,increase the air flow. Closed tight,can effectively prevent the outdoor wind,light and dust from entering the house. The first use of high quality nylon PA66 material, to ensure the servile life of the open mechanism.Centrifugal type open parts are connected, use copper rivets link, Wear no rust, good flexibility, reduces friction coefficient; Guide rod made of 304 stainless steel, plus special material, ensure the intensity, not rusty.greatly improving the service life. |
 |
Using imported belt, to ensure that the service life, free Maintenance: The service life of the belt in a type A on the basis of an increase of 3 times. |
 |
In order to facilitate handling, fan on both sides of the fuselage design of the recessed plastic handle, convenient transportation, improve transport efficiency, and reasonable design, beautiful appearance, not to hurt the hand, not easy to damage. |
MP HEAVY HAMMER TYPE EXHAUST FAN
Fans mainly consists of blade, motor, frame, protect net, bracing cage, shutters. The motor drives blade to cause air flow and louver window can open and close automatically to keep the dust from entering.
TECHNICAL PARAMETERS
MP HEAVY HAMMER TYPE EXHAUST FAN
 |
Fan blade is made of Krupp stainless steel by punch forming, no dust, attrac- tive and durable. Special blade shape design ensure large air volume, no deformation, no broken, keep air volume same all the way. |
 |
Both Chinese famous motor and Siemens motor are available. Motor voltage and frequency could be customized Chinese famous motor, special design for fan, the first one put forward the phase lack protection device which could power off when shortage of electricity. Motor protection grade IP55, insulation Class:Grade F. |
 |
Fan belt pulley is made of high strength aluminum-magnesium alloy by die -casting which reduces the weight of blade impeller complete, high corrosion resistance. Special reinforced ribs pulley design. Blast-sanding treatment for attractive appearance, eliminate internal stress to improve its own rigidity and stability, never broken. |
 |
Fan bearing adopts imported double-row bearing with special waterproof design, water can t enter, High strength, lower noise, maintenance free and long service life. |
 |
Using high strength nylon swung drop hammer opening device to ensure the shutters opening and closing flexible. |
 |
Using imported belts, making sure long service life, free to maintain. |
MP SHUTTER CONE FAN
PERFORMANCE CHARACTERISTICS
- Reasonable cone designing which can concentrate blowing and direction, so the air flow is bigger and the fan will be energy-efficient, lower noise
- The frame is hot galvanized with advanced auto-machining technique. The thickness of the galvanized layer is 180g/m??
- One fan with 6 Stainless steel blades, model 430BA. Do balance test to make sure the weight of each blade is similar
MP BUTTERFLY CONE FAN
 |
Using advanced front double door opening device small wind resistance, good sealing, high efficiency, lengthened cone design improve exhaust power. Fan double doors closed with the rubber sealing which effectively. avoid air back-flow when start fans at different time. Greatly improves the operation efficiency by 15-20% red with the same power fan. Galvanized steel frame is made of180g/m galvanized layer avoid rust. Fan blade is special designed for top grade efficiency which made of Krupp stainless steel by punch forming. Large air volume,no deformation, no broken, no dust,attractive and durable Thickness 12mm, surface finish BA grade. |
MP CIRCULATION FAN
PERFORMANCE CHARACTERISTICS
- The electric machine use excellent brand
- International advanced energy conservation technology testing
- Light aluminum board punch fan blade, wide angle, heavy wind and low noise
- Outer covering is stainless steel or steel spraying available
- Equipped with beautiful and convenient button type hanging articles
- Long service life over 10 years
MP COW HOUSE HANGING EXHAUST FAN
 |
Fan blade is made of Krupp stainless steel by punch forming, no dust, attractive and durable. Special blades shape design ensure large air volume, no deformation, no broken, keep air volume same all the way. |
 |
Both Chinese famous motor and Siemens motor are available. Motor voltage and frequency could be customized Chinese famous motor, special design for fan, the first one put forward the phase lack protection device which could power off when shortage of electricity Motor protection grade IP55, insulation Class: Grade F. |
 |
Fan belt pulley is made of high strength aluminum-magnesium alloy by die-casting which reduce the weight of blade impeller complete, high corrosion resistance, Special reinforced ribs pulley design. Blast-sanding treatment for attractive appearance, eliminate internal stress to improve its own rigidity and stability, never broken. |
LIGHT TRAP
PERFORMANCE CHARACTERISTICS
- Non-glare PVC materials, by extrusion molding finished, anti-aging, chemical resistant, high pressure washable.
- Reasonable design, different dimension available, easy assembly
- Frame options for customer: stainless steel sheet or galvanized sheet.
TECHNICAL PARAMETERS
MP PAPER COOLING PAD
Cooling pad has one layer of thin water film on the surface of the corrugated
fiber paper. When the outside hot air pass through the paper. The water on the thin film absorb heat in the air and then evaporate into vapor, and the cool air can enter the room. It is a good use of the principle of water evaporation temperature decreases.
FEATURES
- With water as the medium for the process of pollution to the environment is conducive to health, environmental friendly and energy saving.
- Water evaporation produces a large number of negative oxygen ions which increases the oxygen content in air.
- Color uniformity, good water absorption, the proliferation of fast and long service life.
- Low energy consumption, one-tenth of the traditional air-conditioning power consumption.
- Galvanized frame aluminum frame and stainless steel frame for choice
MP SPECIFICATION
MP INSTALLATION DIAGRAM
MP PLASTIC COOLING PAD
Working Diagram
Water piece of plastic material, mesh is hexagonal honeycomb mesh, mesh back and forth between for hole, hole wall with a through hole. the structure of water is advantageous for the ventilation and water penetration. Adoption of plastic water mildew resistance durability and cleaning, greatly reduces the use cost, prolong service life.
